Description

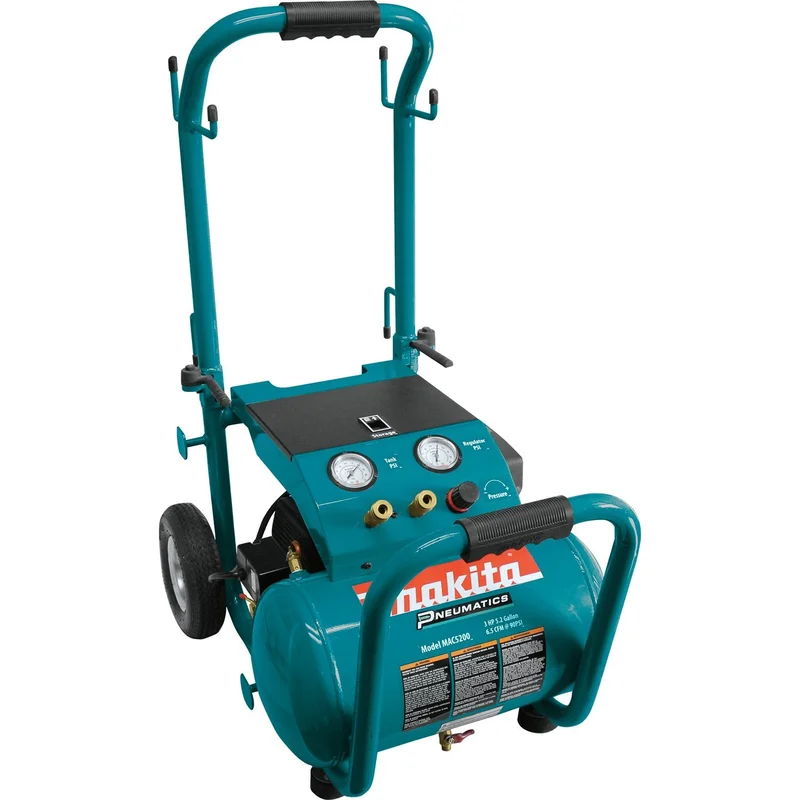

MAC5200
3.0 HP* Big Bore™ Air Compressor
- POWER : 6.5 CFM @ 90PSI; Powerful enough to run two framing nailers
- PERFORMANCE : Cast iron cylinder with greater bore and stroke for maximum performance
- DURABILITY : Roll cage construction for extra protection to pump and motor assembly
- CONVENIENCE : Oil drain and oil sight glass conveniently located for easy access and maintenance
- INCLUDES : Oil and 1/4” universal quick couplers (2)
Product Features
- Cast iron pump with Big Bore™ cylinder and piston is engineered to provide faster recovery time for improved performance
- Powerful 3.0 HP motor produces 6.5 CFM at 90 PSI for increased productivity
- Pump is oil-lubricated for cooler running temperatures and reduced wear
- Durable cast iron cylinder reduces wear and increases pump life; removable for easy maintenance
- Folding handle with low profile design for easy storage with handle folded
- Rugged wheels for jobsite portability
- Built-in storage compartment conveniently stores air fittings and accessories
- Air hose wrap stores 50 ft. of 3/8″ air hose with handle folded or upright
- Copper finned discharge tubing for increased heat dissipation and reduced water in the tank
- Tool hangers store tools when not in use
- Large automotive style industrial air filter for increased air intake and greater efficiency
- Roll cage construction for extra protection to pump and motor assembly
- Oil sight glass for fast, easy and efficient maintenance
- Lever-handle ball valve tank drain improves upon standard petcock design for easier maintenance and air tank release
- Convenient oil drain at the front of the pump for easy access
- Built-in thermal overload for additional motor protection
Product Specifications
- Maximum Horsepower : 3 HP
- Running Horsepower : 2.1 HP
- Tank : 5.2 gal.
- Performance (40 PSI) : 6.9 CFM
- Performance (90 PSI) : 6.5 CFM
- Maximum Pressure : 140 PSI
- Net Weight : 88 lbs.
- Pump Type : Oil-Lubricated
- Gas or electric : Electric
- Shipping Weight : 107 lbs.
- UPC Code : 088381-053549
