Description

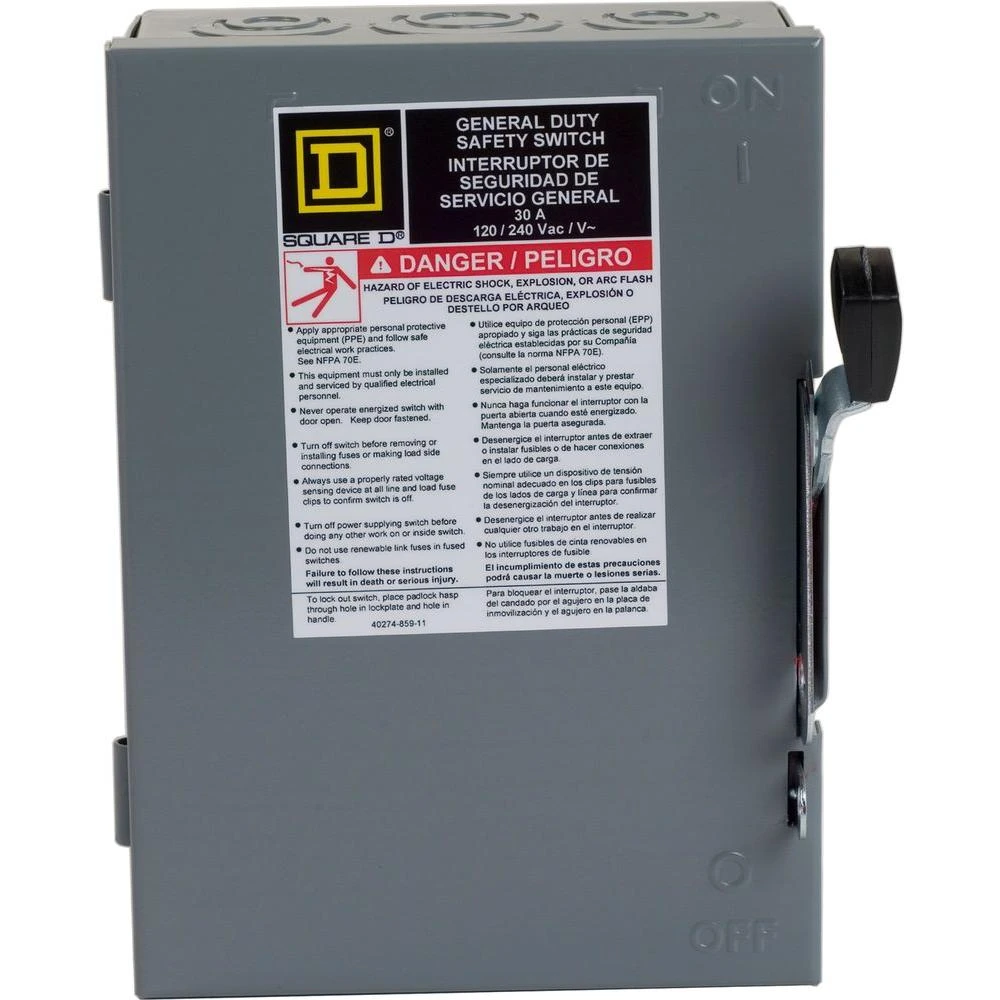

The Square D by Schneider Electric 30 Amps 240 Volts 2 Pole General Duty Safety Switch is designed for residential and commercial applications where durability and economy are prime considerations. Typical loads are lighting, air conditioning and appliances. This switch is suitable for use as service entrance equipment when equipped with a service grounding kit. The switch is UL listed, File E2875, and meet or exceed the NEMA Standard KS1. For more than 100 years the Square D brand safety switch has been the unchallenged leader in the market.
3-Wire design with 2 blades and fuse holders and 1 neutral
120/240 Volts AC
30 Amperes
NEMA Type 1 metallic enclosure for indoor use
1.5/3.0 Horse Power 240 Vac single phase (Standard/Maximum)
3.0/7.5 Horse Power 240 Vac three phase (Standard/Maximum) for corner grounded delta system only – Refer to data bulletin 2700DB0202
Terminal lug data: one #12-6 aluminum or #14-6 copper
100 kA UL listed short circuit withstand rating maximum with class R fuses and class R Kit DRK30 properly installed
Fusible Switch — Cartridge Fuse Class H, K or R
Neutral bar included
Service Entrance Rate – Purchase Separately Service Ground Kit PK3GTA1
UL Listed
Protection from live parts with cover closed.
Protection from Arcing during switching
Provides emergency disconnecting means
Protects switching components from environment
Tangential Knockouts for ease of installation
OSHA lockout
