Description

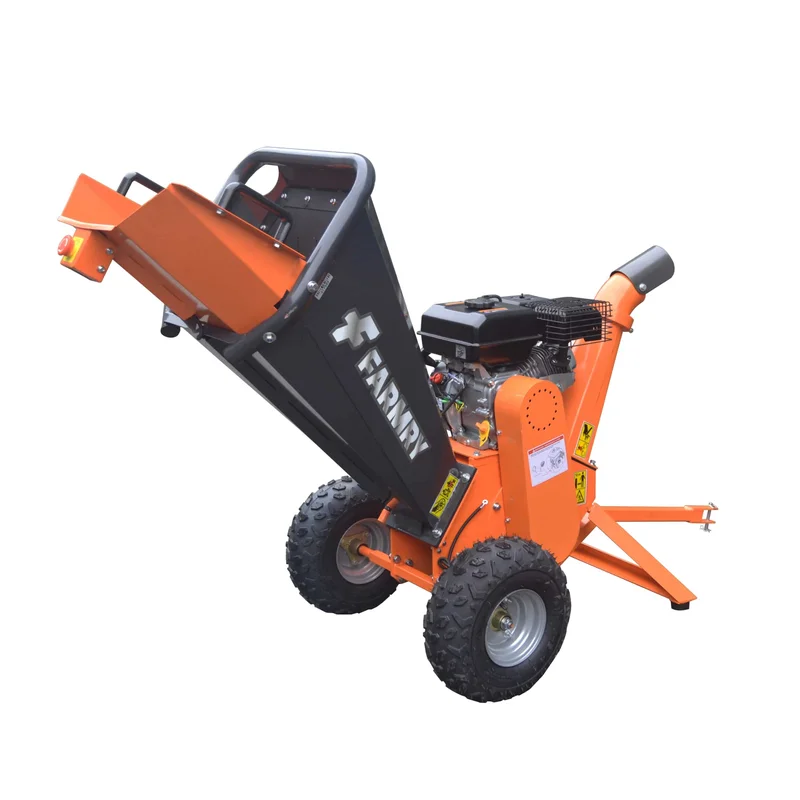

| MODEL NAME | WOOD CHIPPER | Cutting blades | double edge reversible hardened steel cutting blade |
| MODEL NO. | DR-GS-65H | Blade | 5.9” ×2.2” × 0.2”/150x55x5mm |
| Engine | Ducar/RATO | Tow bar | optional |
| Power | 7HP(accroding engine) | Wheel | 4.10/3.5-4 |
| Displacement | 212cc(accroding engine) | Drive train | dual v belt drive |
| Start | Pull | Clutch mechanism | centrifugal clutch |
| Emergency stop device | press-button control | Product size, L ×W× H | 59.1*21.3*42.5 inch |
| Certificate | TUV CE | Weight(less fuel/water containers) | 200.2lbs |
| Chipping capacity | 4 inch | Crate dimensions L×W×H | 34.6*22.2*32.7 inch |
| Chipping disc/drum diameter | 9.1 inch | Loading Qty | 52pcs/20FT, 156 pcs/4HQ |
| Infeed throat opening | 6*5 inch | Tool Box | optional |
| Feed hopper size | 17*15 inch | 360°discharge | optional |
| Discharge chute height | 27.6 to 39.4 inch | Other Engine option | Rato, loncin, B&S, Kohler, Honda |
