Description
Product

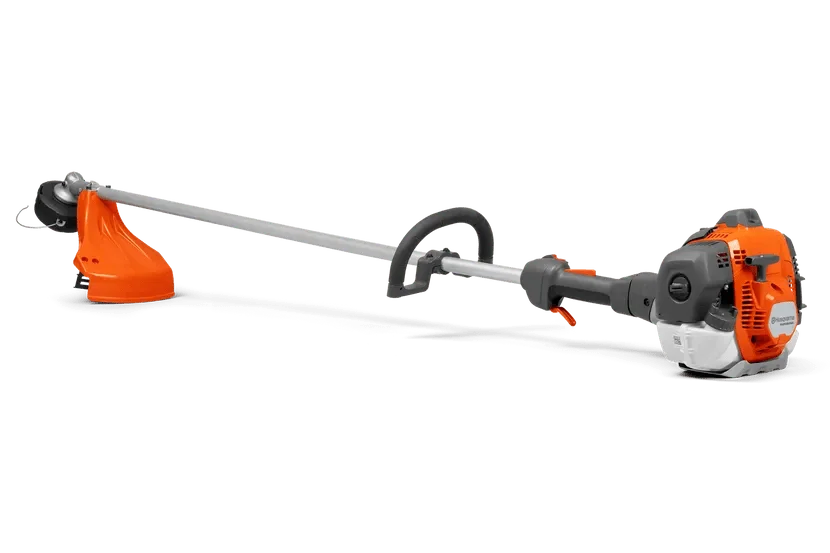

When you want maximum productivity from a trimmer, Husqvarna’s 525LS is the way to go. The 525LS delivers the best power-to-weight ratio in its class*, featuring a powerful and fuel-saving X-Torq® engine. At under 10 pounds, the 525LS is lightweight while featuring durable armor plating and a 7-spline solid shaft. Husqvarna’s LowVib™ design with rubber isolation in the handle delivers comfortably low vibration levels to help reduce fatigue. If you’re looking to maximize your productivity, put a 525LS in your landscaping trailer or shed.
*Based on weight of tool without fuel. Ratio calculated using weight (lbs.) and engine horsepower. Class defined as pro-grade petrol trimmers with engine displacement in the 20cc to 29cc range.
Product Specifications
| Capacity | T35X narrow guard. Scaper handles, US/CASKU: 970 44 64‑01 |
| Cutting width | 19.3 in |
|---|---|
| Dimensions | |
| Weight (excl. cutting equipment) | 10.14 lbs |
| Product size length | 70.43 in |
| Tube diameter | 0.94 in |
| Product size height | 8.98 in |
| Product size width | 9.53 in |
| Tube length | 58.386 in |
| Engine | |
| Power output | 1.34 hp |
| Cylinder displacement | 1.55 |
| Maximum rpm output shaft | 6,500 rpm |
| Fuel tank volume | 21.98 fl oz |
| Fuel tank volume | 0.65 l |
| Clutch engagement speed (±120) | 4,000 rpm |
| Electrode gap | 0.03 in |
| Fuel consumption | 600 g/kWh |
| Idling speed | 3,000 rpm |
| Maximum power speed | 8,500 rpm |
| Spark Plug | Husqvarna HQT-2 |
| Torque, max. | 1.2 Nm |
| Torque, max. at rpm | 6,000 rpm |
| Equipment | |
| Gear ratio | 13 |
| Drive gear angle | 30 ° |
| Trimmer head | T35X M10 |
| Sound and noise | |
| Sound power level, guaranteed (LWA) | 107 dB(A) |
| Sound pressure level at operators ear | 98 dB(A) |
| Vibration | |
| Equivalent vibration level (ahv, eq) left handle | 3 m/s² |
| Equivalent vibration level (ahv, eq) right handle | 2.8 m/s² |
| Lubricant | |
| Lubricant type (Engine) | Husqvarna 2 stroke or equiv. at 50:1 |
