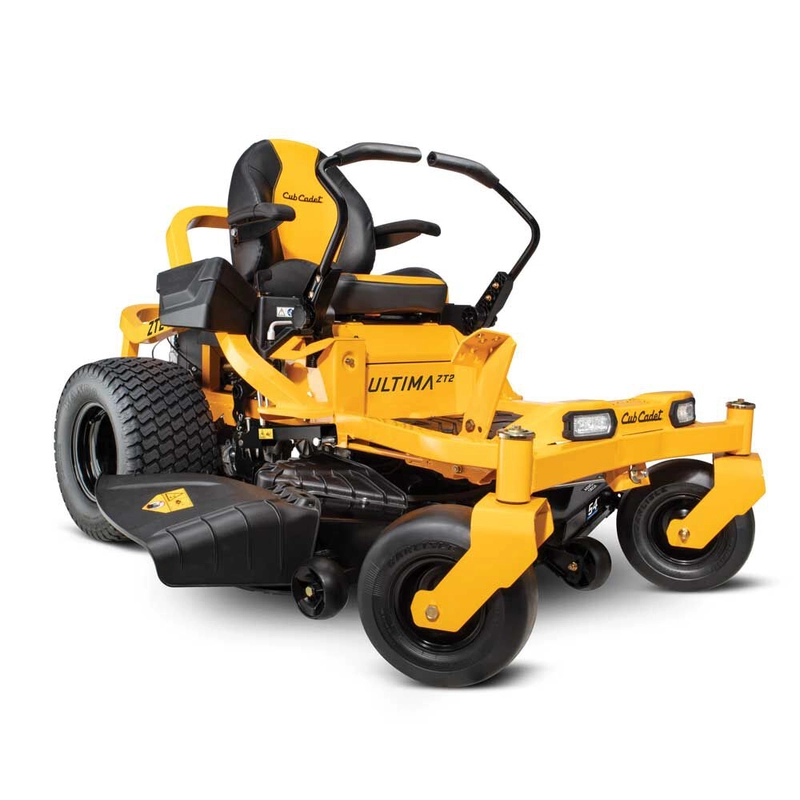

Ultima ZT
The award-winning Ultima Series™ features enhanced strength and durability, redefined comfort and uncompromised performance.
Features:
- A premium 23 HP/726cc Kawasaki FR691V twin-cylinder OHV engine, commercial-grade power that meets your yard’s toughest demands
- Dual hydrostatic transmissions allow for quick and effortless 7.5 MPH forward (3.5 MPH reverse) ground speeds that leaves your lawn with a professional-quality finish
- 54-in. AeroForce fabricated deck with heavy-duty reinforced leading edges and cutting system that delivers a signature cut with fewer clumps and stragglers, finer clippings and increased evenness.
| ZT2 54 Accessories | |
| Triple Bagger | 10 Bushel | 19A70056100 |
| 52-inch All-Season Plow Blade Attachment | 19A70063OEM |
| Plow Extension Kit | 759-05742 |
| 54″ Striping Kit | 19A70059OEM |
| 54″ XTreme Mulching Kit | 19A30051100 |
| Fender Kit | 19A70062100 |
| Tire Chains | 490-241-0024 |
| Cub Cadet Hauler | 19B40026100 |
| Armrest Kit | SI-183783SN |
Product Specifications:
Engine |
|
| Engine Brand | Kawasaki® |
| Engine Model | FR Series |
| Engine Model Number | 691V |
| Engine Displacement | 726cc |
| Engine Output | 23HP |
| Starter Type | Electric |
| Fuel Tank Capacity | 3.5 gal. US (13.25 L) |
| Cylinders | Twin |
| Engine Start | Ignition Key |
| Engine Oil Capacity | 2.1 qt US ( 2 L) |
| Lubrication | Fully pressurized |
| Charging System | 15 amp regulated |
| Fuel Gage | No |
| Governor | Mechanical |
| Choke | Separate Choke |
| Air Filter | Single Element |
| Oil Filter | Yes |
| Fuel Delivery | Carburetor |
Battery |
|
| Battery | 210 CCA |
| Battery Type | AGM (Absorbent Glass Mat) |
| Battery Voltage | 12V |
Drive System |
|
| Transmission | Tuff Torq TZ 350 |
| Forward Speed | 7 MPH / 11.3 km/h |
| Reverse Speed | 3.5 MPH / 5.6 km/h |
| Drive System | Hydrostatic |
Cutting Deck
|
|
| Deck Cutting Width | 54 in |
| Deck Wash | No |
| Deck Material | 11-gauge steel |
| Deck Engagement (PTO) | Electric |
| Deck Construction | Fabricated |
| Blade(s) | 3 |
| Deck Lift | Foot pedal with Dial Adjust |
| Cutting Height Range | 1″ – 4.5″ |
| Anti-Scalping | 3 gauge wheels |
| Deck Positions | 15 |
Warranty |
|
| Warranty | 3-year unlimited hours |
| Frame Warranty | Lifetime Limited |
| Deck Shell Warranty | Lifetime Limited |
| Commercial Warranty | No |
Chassis |
|
| Frame | 2” x 2” tubular steel |
| Turning Radius | 0º |
| ROPS | No |
| Rear Tow Hitch | Yes |
| Corrosions Protection | Yes |
Controls |
|
| Cruise Control | No |
| Brakes | Disc |
| Steering Control | Lap Bars |
Comfort
|
|
| Seat Type | 20″ high-back |
| Armrests | No |
| Seat Adjustment | Knob |
Wheels
|
|
| Rear Tires | 20″ x 10″-8″ |
| Front Tires | 13″x 6.5″-6″ |
| Tire Tread | Turf Master / Multi Trac |
Additional Specifications |
|
| Hour Meter | Yes |
| Mulch Kit | Available separately |
| Headlight(s) | Dual LED |
| Cup Holder | Yes |
| Operator Presence System | Yes |
| Parking Brake | Lap Bar Integrated |
| Model Number | 17AIEAC3A10 |
Specifications |
|
| Series | Ultima Series™ ZT |
If you have any questions about this Cub Cadet ZT1 50-inch Ultima zero-turn mower, give us a call during business hours and one of our friendly associates will be happy to assist you. 410-692-5170
