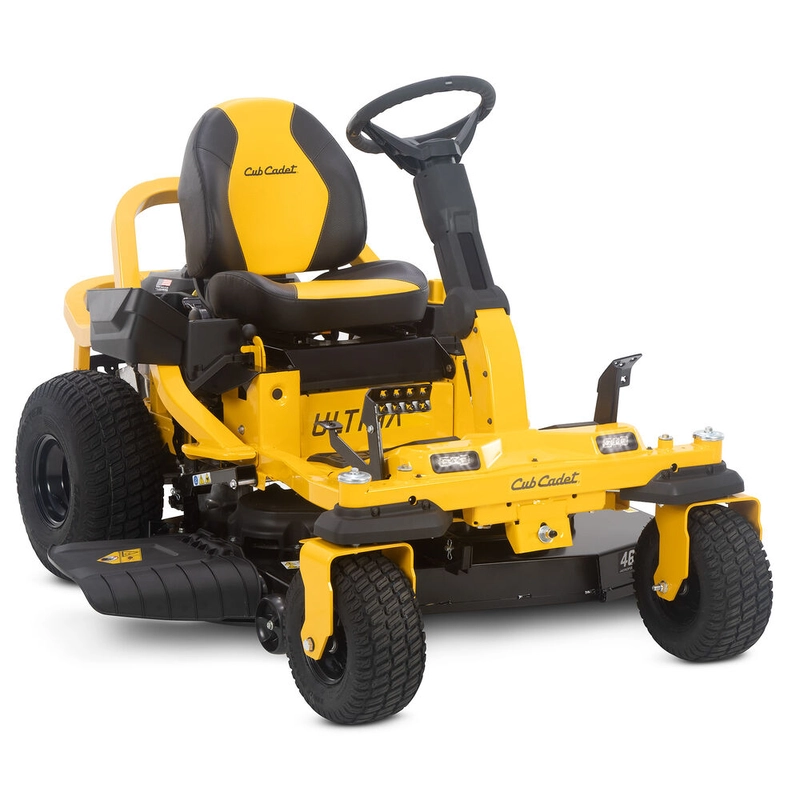

CUB CADET ULTIMA ZTS1 46″ RESIDENTIAL ZERO-TURN MOWER
Equipped with Cub Cadet® Synchro-Steer™ Technology, the Ultima ZTS line delivers precision, control and stability on hills up to 20 degrees.
Features:
- Synchro-Steer™ technology offers 4-wheel control and provides unrivaled stability for straight-line mowing on hillsides and slopes up to 20-degrees
- A 22 HP/725cc Kohler 7000 series V-twin OHV engine delivers high-performance power and exceptionally smooth, quiet operation
- Dual hydrostatic transmissions allow for quick and effortless 7 MPH forward (3.5 MPH reverse) ground speeds that quickly leaves your lawn with a professional-quality finish
- 46-in. AeroForce fabricated deck that delivers a signature cut with fewer clumps and stragglers, finer clippings and increased evenness.
| ZTS1 46 Accessories | |
| Double Bagger | 6.5 Bushel | 19B70054100 |
| 46″ Striping Kit | 19A70061OEM |
| 46″ XTreme Mulching Kit | 19A30047100 |
| Hour Meter Kit | 490-900-C075 |
| Tire Chains | 490-241-0023 |
| Cub Cadet Hauler | 19B40026100 |
Product Specifications:
Engine |
|
| Engine Brand | Kohler® |
| Engine Model | 7000 Series |
| Engine Model Number | KT725 |
| Engine Displacement | 725cc |
| Engine Output | 22HP |
| Starter Type | Electric |
| Fuel Tank Capacity | 3.5 gal. US (13.25 L) |
| Cylinders | Twin |
| Engine Start | Ignition Key |
| Engine Oil Capacity | 2.0 qt. US (1.89 L) |
| Lubrication | Fully pressurized |
| Charging System | 12 amp regulated |
| Fuel Gage | No |
| Governor | Mechanical |
| Choke | Choke-a-matic |
| Air Filter | Dual element |
| Oil Filter | Yes |
| Fuel Delivery | Carburetor |
Battery |
|
| Battery | 210 CCA |
| Battery Type | AGM (Absorbent Glass Mat) |
| Battery Voltage | 12V |
Drive System |
|
| Transmission | Hydro-Gear EZT 2200 |
| Forward Speed | 7 MPH / 11.3 km/h |
| Reverse Speed | 3.5 MPH / 5.6 km/h |
| Drive System | Hydrostatic |
Cutting Deck
|
|
| Deck Cutting Width | 46 in |
| Deck Wash | No |
| Deck Material | 11-gauge steel |
| Deck Engagement (PTO) | Electric |
| Deck Construction | Fabricated |
| Blade(s) | 2 |
| Deck Lift | Foot pedal with Dial Adjust |
| Cutting Height Range | 1″ – 4.5″ |
| Anti-Scalping | 2 gauge wheels |
| Deck Positions | 15 |
Warranty |
|
| Warranty | 3-year unlimited hours |
| Frame Warranty | Lifetime Limited |
| Deck Shell Warranty | Lifetime Limited |
| Commercial Warranty | No |
Chassis |
|
| Frame | 2” x 2” tubular steel |
| Turning Radius | 0º |
| ROPS | No |
| Rear Tow Hitch | Yes |
| Corrosions Protection | Yes |
Controls |
|
| Cruise Control | No |
| Brakes | Disc |
| Steering Control | Steering Wheel |
Comfort
|
|
| Seat Type | 20″ high-back |
| Armrests | No |
| Seat Adjustment | Lever |
Wheels
|
|
| Rear Tires | 20″ x 8″-8″ |
| Front Tires | 13″ x 6.5″-5″ |
| Tire Tread | Turf Master / Multi Trac |
Additional Specifications |
|
| Hour Meter | No |
| Mulch Kit | Available separately |
| Headlight(s) | Dual LED |
| Cup Holder | Yes |
| Operator Presence System | Yes |
| Parking Brake | Hand Lever |
| Model Number | 17ARGBYNA10 |
Specifications |
|
| Series | Ultima Series™ ZTS |
If you have any questions about this Cub Cadet Ultima ZTS1 46″ residential zero-turn mower, give us a call during business hours and one of our friendly associates will be happy to assist you. 410-692-5170
