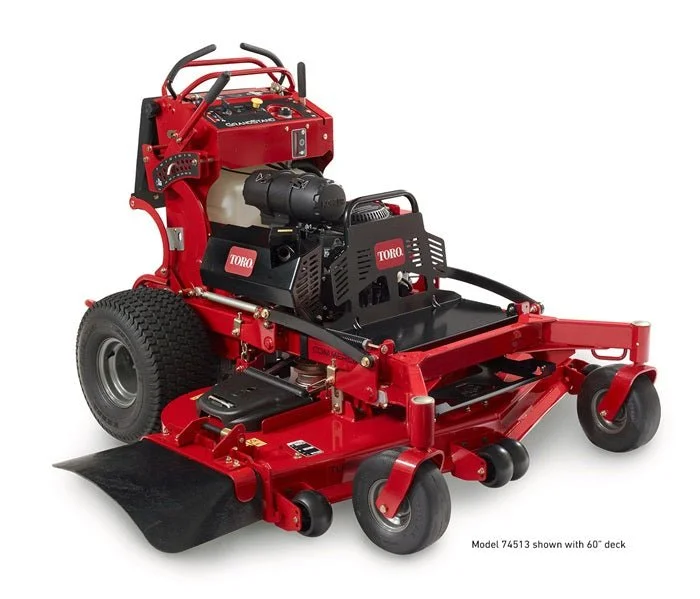

GrandStand 52″ 25 HP 747cc EFI (72519)

Description

Product Highlights

• Improve productivity with easy access on and off the machine with up to 10.5 gallons of fuel capacity to mow longer with fewer stops.
• Exceptional visibility from the GrandStand protects the operator, the mower and the property. The operator is better able to steer clear of obstacles, and easily pass beneath branches.
• Toro’s foldable operator platform instantly converts the GrandStand to a walk-behind. It easily lowers back down when its time to ride – saving time, money and trailer space by eliminating the need to switch mowers.
• Conserves space to get more machines on your trailer, or allows for a smaller trailer and lighter load.

Specifications

• Engine
  25 hp (18.6 kw) Kohler Command EFI 747cc
• Fuel Capacity
  Gas/10.5 gal (39.7 L)
• Cutting Width
  52″ (132.1 cm)
• Adjustable Discharge Baffle
  Standard, tools-free
• Air Filter
  Heavy-Duty Canister Air Cleaner
• Blade Tip Speed
  18,500+ ft/min
• Blade Type
  .25″ (.6 cm) heat-treated steel
• Carrier Frame
  3″ x 1.5″ x 12 gauge (7.6 cm x 3.8 cm x 12 gauge)
• Caster Tires
  (27.9 cm x 10.2 cm – 12.7 cm) Flat-Free Semi-Pneumatic
• Clutch
  Electromagnetic
• Deck Design
  80-grade 7-gauge 52″ (132.1 cm) TURBO FORCE® w/bull-nose bumper
• Discharge Chute
  Rubber
• Drive System
  Unitized Pumps (10cc/rev) & Wheel Motors (10 cir)
• Drive Tires
  20″ X 10.5″ – 8″ (50.8 cm x 26.7 cm – 20.3 cm)
• Engine Horsepower
  25 hp
• Engine Displacement
  747cc
• Ground Speed
  Up To 10 mph forward (16.1 km/h)
• Height of Cut
  1.5″ – 5.0″ (3.8 cm – 12.7 cm)
• Hydraulic Fluid
  Premium synthetic
• Comfort Platform
  Foldable Operator Platform with Suspension
• Spindle Bearings
  Greaseless ball bearings
• Spindle Housing
  9″ (22.9 cm) diameter cast aluminum
• Steering Controls
  Twin lever
• Weight
  895 lbs. (406 kg)
