Description

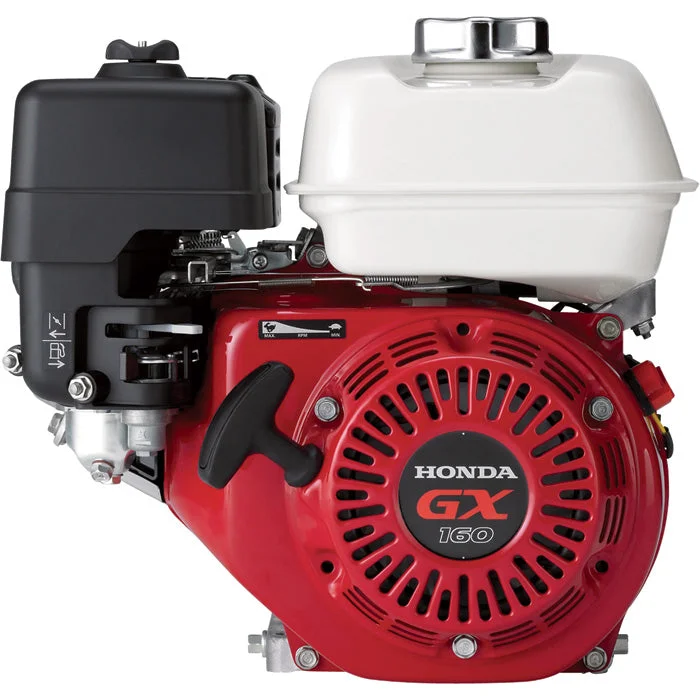

Honda’s GX series horizontal engines are legendary for superior reliability and performance. And there’s no doubt about it: the GX160 lives up to the legend. Lower noise levels, lower vibration, and lower emissions – without sacrificing power output or performance.
FEATURES
|
Fuel Efficient, High Output Operation
- Precision camshaft design offers precise valve timing and optimal valve overlap for better fuel efficiency
- OHV design for increased efficiency and optimal power transfer
- High compression ratio for better fuel efficiency
|
Smooth Performance
- Precision engineered components result in lower vibration
- Ball bearing supported crankshaft for greater stability
|
|
Exceptionally Quiet
- Large capacity, multi-chamber exhaust system
- Reduced mechanical noise due to light weight, noise-reducing materials
- Forged steel crankshaft and rigid crankcase
- Helical cut gears
- Sophisticated air intake system
|
Proven Reliability
- Oil Alert
- New carburetor chamber coating and carburetor filter help to protect against fuel impurities
- Cast iron cylinder sleeve
- High quality materials, fit, and finish
- Dual element air cleaner
- Fuel Valve
- 3-Year Limited Warranty
|
|
Easy to Use and Maintain
- Simple throttle control
- Large fuel tanks
- Large automotive type fuel cap
- Dual oil drains and fill
- Easy, convenient, heavy duty control box
- Easily accessible spark plug
|
Easy Starting
- Heavy duty recoil starter
- Ergonomic, easy to grip recoil rope design
- Automatic mechanical de-compression system
|
|
Emissions Compliant
- Lower emissions, same power output!
- CARB and EPA certified
- No catalyst necessary
|
|
SPECIFICATIONS
| Engine Type |
Air-cooled 4-stroke OHV |
| Bore x Stroke |
68 x 45 mm |
| Displacement |
163 cm3 |
| Net Power Output |
4.8 HP (3.6 kW) @ 3,600 rpm |
| Net Torque |
7.6 lb-ft (10.3 Nm) @ 2,500 rpm |
| PTO Shaft Rotation |
Counterclockwise (from PTO shaft side) |
| Compression Ratio |
9.0:1 |
| Lamp/Charge coil options |
25W, 50W / 1A, 3A, 7A |
| Carburetor |
Butterfly |
| Ignition System |
Transistorized magneto |
| Starting System |
Recoil Starter |
| Lubrication System |
Splash |
| Governor System |
Centrifugal Mechanical |
| Air Cleaner |
Dual Element |
| Oil Capacity |
0.61 US qt (0.58 L) |
| Fuel Tank Capacity |
3.3 U.S. qts (3.1 liters) |
| Fuel |
Unleaded 86 octane or higher |
| Dry Weight |
33 lbs (15.1 kg) |
| Dimensions |
12.2″L x 14.3″W x 13.6″H |
