Description
Product Highlights

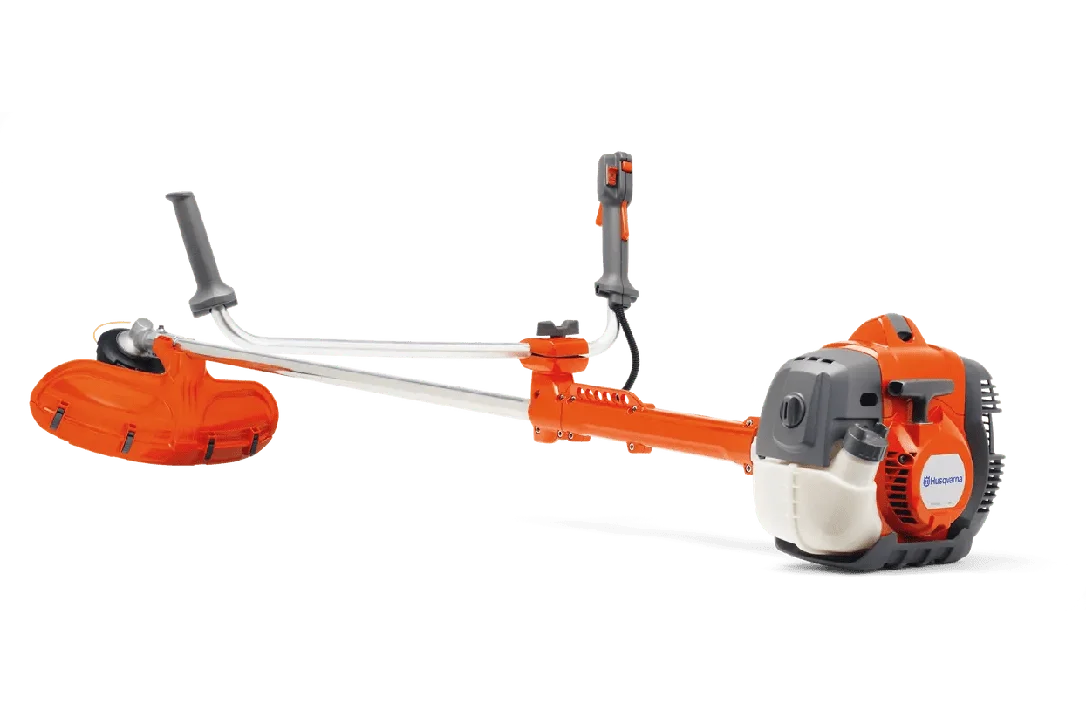

Brushcutter for both grass trimming and forestry clearing
Husqvarna 336FR comes complete with trimmer head, grass blade and saw blade. This flexibility makes it an ideal solution for people who require the benefits from both the grass blade and saw blade in one product. The X-Torq® engine provides raw power and excellent fuel economy. Delivered with Balance 35 harness.
Specifications
| Engine | T35 + Multi 300-3(1″), Scarlett 200-22 , US 50SKU: 966 60 47‑04 |
| Output shaft power1 | 1.7 hp |
| Cylinder displacement | 2.1 |
| Fuel tank volume | 20.3 fl oz |
| Fuel consumption | 435 g/kWh |
| Maximum power speed | 8,400 rpm |
| Idling speed | 2,900 rpm |
| Maximum rpm output shaft | 8,220 rpm |
| Clutch engagement speed (±120) | 3,800 rpm |
| Electrode gap | 0.02 in |
| Ignition module air gap | 0.01 in |
| Torque, max. | 1.8 Nm |
| Torque, max. at rpm | 6,600 rpm |
| Equipment | |
| Saw blade | Scarlett 200-22 |
| Harness | Balance 35 |
| Transmission | |
| Gear ratio | 1.4 |
| Drive gear angle | 35 ° |
| Dimensions | |
| Weight (excl. cutting equipment) | 15.4 lbs |
| Tube diameter | 1.1 in |
| Sound and noise | |
| Sound power level, guaranteed (LWA) | 113 dB(A) |
| Sound pressure level at operators ear | 98 dB(A) |
| Vibration | |
| Equivalent vibration level (ahv, eq) left handle | 3.7 m/s² |
| Equivalent vibration level (ahv, eq) right handle | 2.7 m/s² |
| Emission | |
| Exhaust emissions (CO₂ EU V)2 | 862 g/kWh |
| Control | |
| Connectivity | Not applicable |
| Lubricant | |
| Lubricant type (bevel gear) | Mineral grease |
