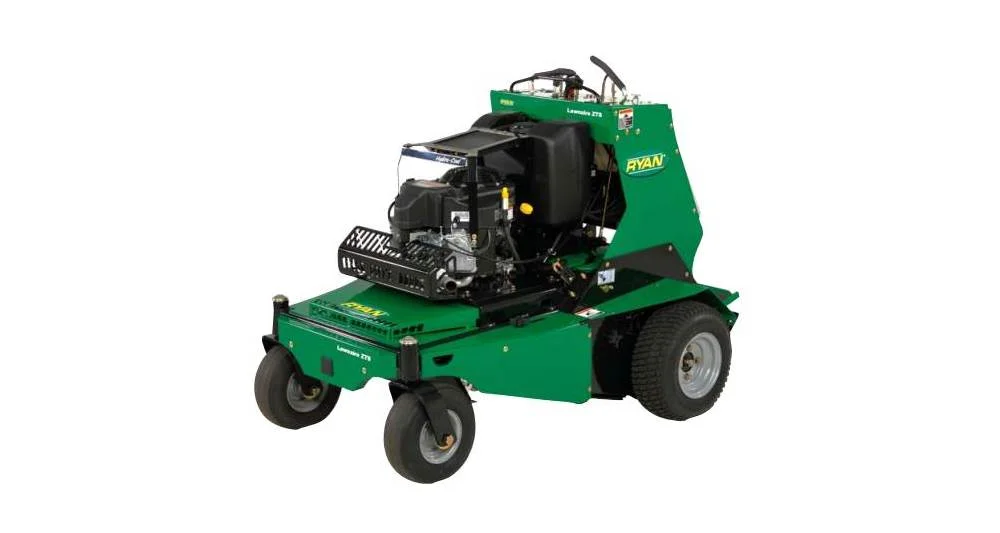

Lawnaire ZTS Stand-On Aerator

Description

A New Approach to Aeration–the Lawnaire® ZTS Stand-On Aerator

Product Highlights

• Innovative automatic chain tensioning system reduces the chain maintenance required.
• Aeration Depth Gauge provides precise aeration depth control in varying soil conditions
• Intuitive control panel with a tine lift switch to raise and lower tines
• Flip up operator platform with a quick latch allows for the Lawnaire® ZTS to be a walk behind aerator and a reduced footprint on trailers.
• Integrated jack stands allow for easy maintenance of the Lawnaire® ZTS
• The Lawnaire® ZTS will change the way you aerate!

Product Specifications

Engine

Engine: Kawasaki FS541V
Fuel Capacity: 5 gal (18.9 L)
Safety System: Interlock,Engine will not start unless parking brake is engaged and OPC is released

Transmission

Hydrostatic: 2 Hydro Gear® ZT3200
Hydraulic Oil Capacity (qt. / L): 7 qt. (6.6L)

Ground Speed

Forward: 0 – 7.4 mph (0-11.9 kmh)
Reverse: 0 – 3.1 mph (0-5.6 kmh)

Wheel & Tine Drive

Drive Wheels: Driven through roller chains
Tine Drive: Outside aeration tines are driven through roller chains
Turning Radius – Tines Down: 5 ft (1.5 m)
Turning Radius – Tines Up: 0
Time to Raise/Lower Tines (sec): 1.4 up, 1.8 down

Tires and Wheels

Style – Drive: Pneumatic
Style – Front Caster: Pneumatic
Style – Drive: 18 x 6.50 – 8
Style – Front Caster: 13 x 5.00 – 6
Pressure – Drive (psi): 15 lbs. (7 kg)
Pressure – Front Caster (psi): 25 lbs. (11 kg)

Aeration

Aeration Width: 30 in. (762 mm)
Number of Tines: 48
Tine Down Pressure: 0-700 lbs. (0 – 318 kg)
Core Depth: 2 – 5 in. (50 – 250 mm)
Holes Per Square Foot: ~5.1 (55/m2)

Dimensions

Width: 47.25 in. (1200 mm)
Length: 60.5 in. (1537 mm) platform up, 69.5 in. (1765 mm) platform down
Height: 48 in. (1219 mm)
Curb Weight: 1,235 lbs. (560 kg)
Productivity: up to 97,800 ft2/hr (9,086 m2/hr)
Warranty: 2-year Limited Warranty

NOTES:
Specifications subject to change without notice.
