Description

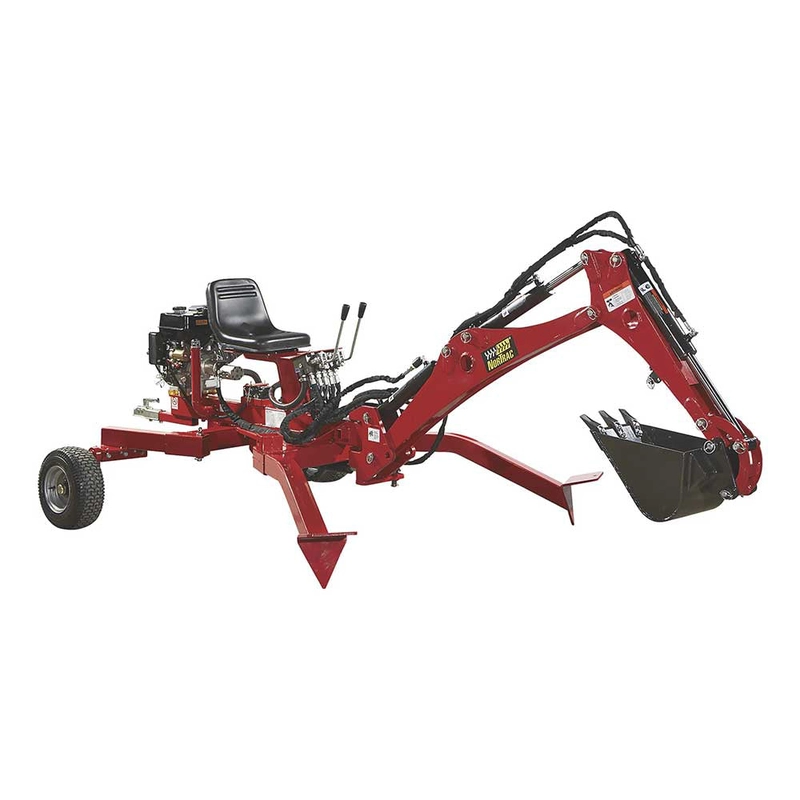

This portable NorTrac towable trencher is powered by a high-performance 15 HP Ducar 420cc engine. It’s perfect for a wide variety of landscaping projects including trenching, planting trees, moving rocks and dirt, removing stumps, and much more. It’s also compatible with a ripper, loader, rock grabber, and other extension components (sold separately). A 1 7/8-in. ball hitch is included for easy hookup to a truck, ATV, UTV, or tractor for transport wherever you need it. Features 340-lb. lift capacity. Some assembly is required. HM46 hydraulic fluid and 5W-30 engine oil required (not included.)
Features
- Includes 12-in. wide, 3-tooth digging bucket
- 15 HP Ducar 420cc gas engine with recoil and electric start
- 60° left and right boom rotation
- 80-in. (6.7 ft.) max. digging depth, 14-in. digging width
- 340-lb. lift capacity
- 8-ft. max. reach
- Approximately 130° operating angle
- 3600 max. RPM
- 2 control levers offer 4-way steering
- 2 large, smooth-rolling tires
- Adjustable safety seat adds comfort
- High-efficiency 3.8 GPM hydraulic oil pump with 4 double-acting hydraulic cylinders and hydraulic oil temperature display
- 2-in. ball hitch for towing with a truck, tractor, UTV, or ATV
- 136 in. L x 76.5 in. W x 61 in. H overall size
Specifications
| Equipment Type | 1 Person |
| Clearing Height | 8 in. Ground Clearance |
| Cylinders | 1 |
| Displacement | 420cc |
| Dry Weight | 990 lbs |
| Engine | 15 hp |
| Engine Brand | Ducar |
| Fuel Capacity | 1.7 Gal. |
| Lift Range | 96 In. Max Height; 340 Lbs Capacity |
| Max RPM | 3600 |
| Max Trench Depth | 80 In. |
| Max Trench Width | 12 In. |
| SKU | 985619 |
| Starter | Electric w/ recoil Backup |
| Torque | 19.54 Ft. Lbs. |
LIFT GATE DELIVERYThis item will ship via truck freight. The driver will not be responsible for helping you unload the freight. If you do not have a means to unload a heavy crate from the back of a tractor trailer (loader, fork lift, etc), please choose the lift gate delivery option above. |
SOME ASSEMBLY REQUIRED.
If you have any questions give us a call during business hours and one of our friendly associates will be happy to assist you. 410-692-5170
