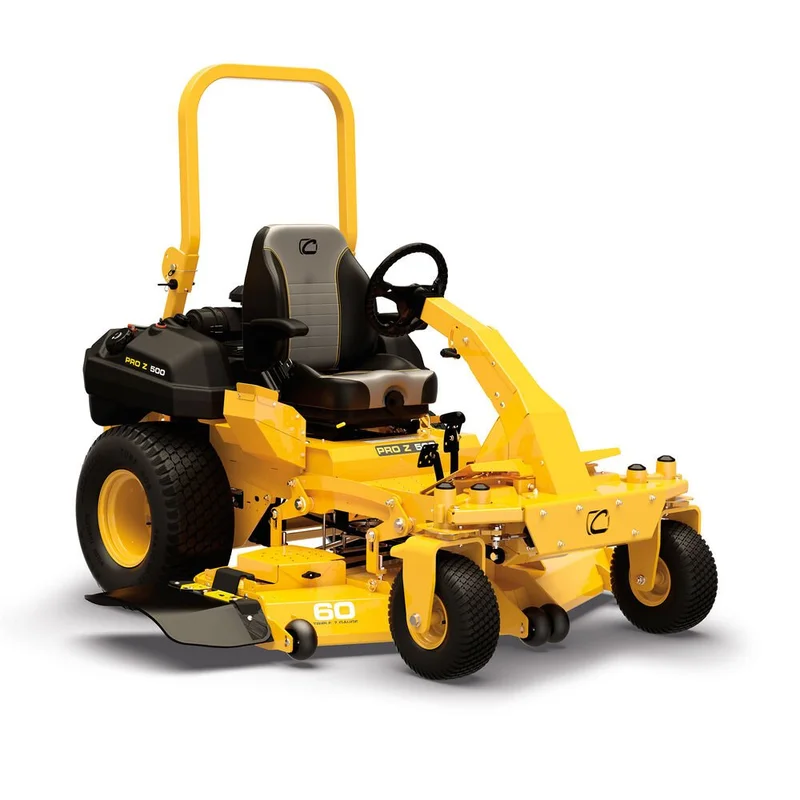

PRO Z 560 S KW Steering Wheel Commercial Zero Turn

Description

Product Highlights

• Cub Cadet’s full commercial-grade powerful and productive steering wheel commercial zero turn mower.

• 27 HP Kawasaki FX850v (852cc) engine and 12cc Parker HTJ transmission
• 3-year limited commercial warranty (no hour limitations) and 5 year / 1,750 hour limited deck construction warranty

Product Specifications

Engine

• Engine Brand: Kawasaki®
• Engine Model: FX Series
• Engine Model Number: 850V
• Engine Displacement: 852cc
• Engine Output: 27HP
• Fuel Tank Capacity: Dual 7.45 gal. US (28.2 L)
• Cylinders: Twin
• Engine Start: Ignition Key
• Engine Oil Capacity2.0 qt. US (1.89 L)
• Lubrication: Fully pressurized
• Charging System: 15 amp regulated
• Fuel Gauge: Dial
• Choke: Separate Choke
• Air Filter: High Density
• Oil Filter: Yes
• Fuel Delivery: Carburetor

Drive System

• Transmission: Parker HTJ Series, 12cc pump / 260cc wheel motor
• Forward Speed: 10 mph / 16 km/h
• Reverse Speed: 5 mph / 8km/h

Cutting Deck

• Deck Cutting Width: 60 in
• Deck Material: fabricated 7ga. (.187”) steel shell
• Deck Engagement: (PTO) electronic fingertip engagement pto
• Deck Construction: 7ga. top plate 7ga. bottom reinforcement ¼” rolled leading edge
• Spindle Construction: 8″ sealed cast aluminum housing (maintenance-free)
• Blade(s): 3 high-lift Marbain® blades / 18,500 fpm (approx.)
• Cutting Height Range: 1” to 5” in 1/4” increments
• Anti-Scalping: 2 front deck gauge wheels
• Deck Positions: Foot pedal with spring assist 16 Positions

Warranty

• Deck Shell Warranty: 5 year / 1,750 hour limited deck construction warranty
• Commercial Warranty: 3 year / no hour limit commercial warranty

Chassis

• Frame: Fully welded, full-length 3/8 x 5″ laser cut steel / integrated tie-down slots
• Front Axle: 2″ x 3″ solid axle tube
• ROPS: 2″ x 2″ spring-latch tool-less foldable 3 position
• Bumper: 5/16″ Thick Steel rear engine guard/pre-drilled mounting points for attachments with integrated rear hitch
• Yokes: 1/2″ thick steel front yokes

Controls

• Cruise Control: NA
• Brakes: Hand-operated lever with integrated hydro pump release lever
• Steering Control: High Performance Steering Wheel with electronic power steering & Foot-pedal Control

Comfort

• Seat Type: Cushion with seat belt
• Armrests: Standard
• Seat Suspension: High-back dial suspension with EVC
• Seat Adjustment: Angle back adjust

Wheels

• Rear Tires: 24″x12″-12″
• Front Tires: 15″x6″-6″Kenda K505
• Tire Tread: Turf Tread

Dimensions

• Dimensions L/W/H: 84″ L x 56″ W x 50″ H
• Weight (approx.): 1424 lbs.

Additional Specifications

• Hour Meter: Crew Boss all functions
• Discharge Chute: High-density, impact-resistant rubber
• Cup Holder: Intergrated into Side Pod
• Model Number: 53TIHJUV050

Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
