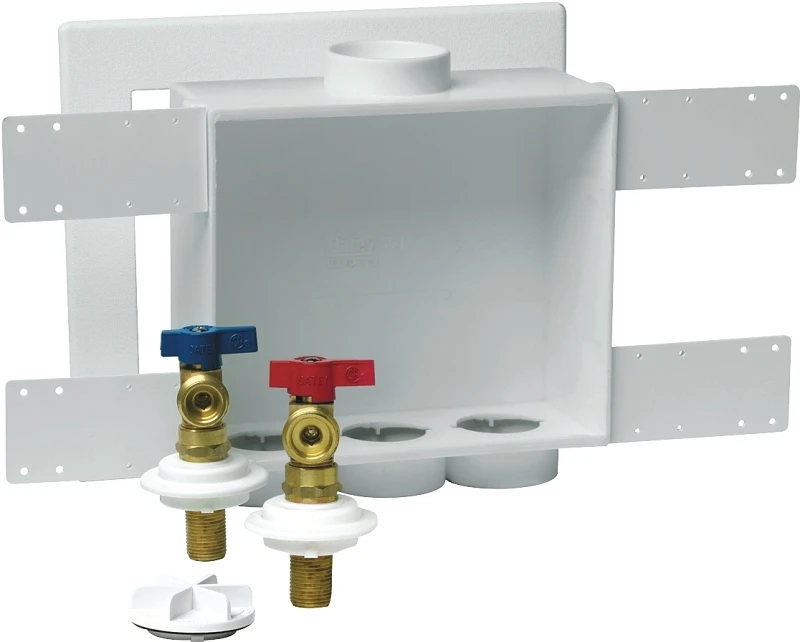

Quadtro Washing Machine Outlet Box

Description

Oatey Quadtro, Washing Machine Outlet Box, 1/4 Turn Brass Ball Valves Copper Sweat, 2″ Drain Opening Fits PVC Or ABS Schedule 40 DWV Pipe, Easy To Remove Knockout, Patent Pending Hammer Valves, Snap On Faceplate Frame Accommodates Up To 1″ Drywall, Box Made Of High Impact Polystyrene, Top Or Bottom Valve Mount, 4 Support Brackets Included For Mounting, Box Dimensions 8-3/4″W x 7-1/2″H x 3-5/8″D, Faceplate Dimensions 11-3/4″W x 10-1/8″H.

Quadtro® residential and commercial washing machine outlet box

2 in. drain opening fits PVC or ABS Sch. 40 DWV pipe

Easy-to-remove, tool-free 1/4-turn knockout

Snap-on faceplate frame accommodates up to 1 in. drywall

Box made of high impact polystyrene stands up to the roughest job site abuse

Connects to copper supply line with sweat connection

4 support brackets included for easy top or bottom valve mounting

Two proprietary lock and load 1/4-turn valves enable left, right or center positioning of the drain pipe

Four openings accommodate: A hot water PEX-compatible valve, a cold water PEX-compatible valve, PVC or ABS Sch. 40 drain pipe for connection to your DWV system, and the option for top-down supply line installation

Box Dimensions: 9.43 in. W x 9.61 in. H x 3.73 in. D; Box Opening Dimensions: 8-3/4 in. W x 7.26 in. H

Faceplate Dimensions: 11.73 in. W x 10.19 in. H
