WH20

Description

Product Highlights

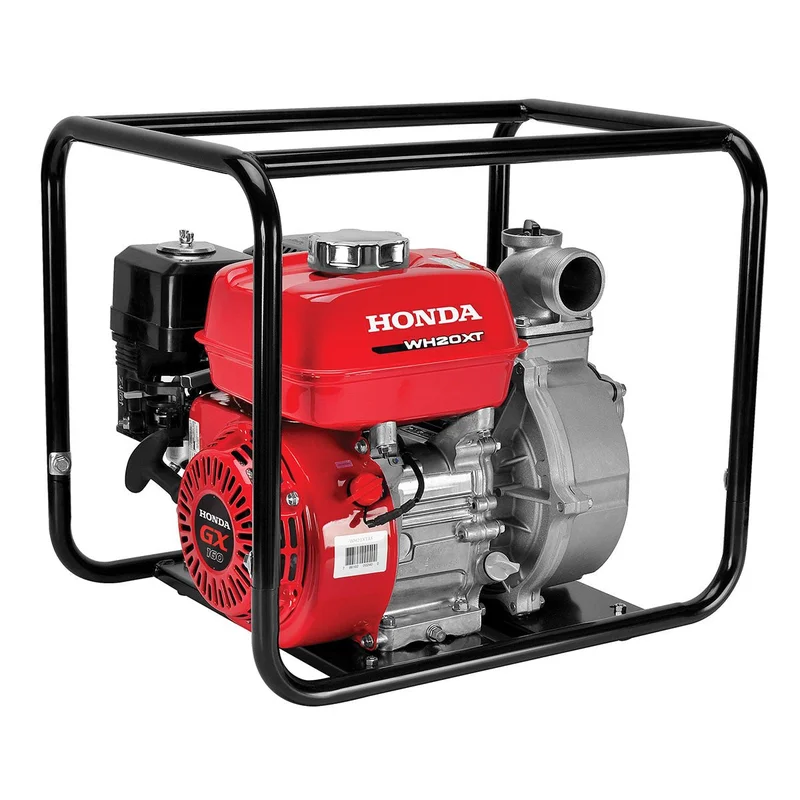

2″ high pressure water pump

• 119 gal./min capacity
• 64 psi max.
• Cast iron volute and impeller

Features

High pressure – ideal for sprinklers or nozzles

With a maximum pressure of 64 psi, the WH20 is designed for a variety of applications requiring high pressure.

Easy starting Honda OHV commercial engine

The durable Honda GX series commercial grade engine is easy starting and provides ample power for the toughest conditions.

119 gal./min capacityCast iron volute and impeller

The rigid-mount cast iron volute reduces case wear, increasing the life of the pump.

Heavy duty full frame protection

Protects the pump, while offering a convenient tie down location for transport.

Lightweight aluminum case

Specifications

Engine: GX160Displacement: 163ccBore and stroke: 2.7″ x 1.8″Compression Ratio: 9.0:1Oil Alert: N/APump Type: High Pressure, Centrifugal, Self-primingVolute: Rigid Mounted Cast IronImpeller: Cast IronMechanical Seal (Pump case / impeller): Carbon/CeramicPriming time: 80 sec. at 16.4 system: DirectDischarge capacity: 119 gals./ port diameter: 2″ NPTDischarge port diameter: 2″ NPTTotal head lift: 148 head lift: 26 pressure: 64 psiSolids handling: N/ADimensions (LxWxH): 20.5″ x 15.7″ x 18.1″Dry weight: 60 Capacity: 0.82 galRun Time @ Max Discharge: 1.5 hrStrainer Part #78325-YB7-702Residential Warranty: 24 monthsCommercial Warranty: 12 monthsWARNING: California Prop 65 Information
